Product Information :
Name :

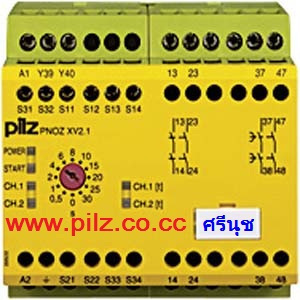

774558 PNOZ XV2.1 เซฟตี้รีเลย์ PilZ @ SRINUTCH Category :
- ไฟฟ้าและอิเล็กทรอนิกส์
Sub - Category :
- เครื่องใช้ไฟฟ้า
Brand :
พิ้ลซ์ Model :
774558 PNOZ XV2.1 300/24-240VACDC 2n/o 2n/o t PilZ @ SRINUTCHProduct Type :
- สินค้า, ผลิตภัณฑ์
Short Description :
Brand : PilZ
Safety Relays
Type : PNOZ XV2.1 300/24-240VACDC 2n/o 2n/o t
Part No.: 774558
Supplier : Srinutch Components Co.,Ltd.
Website : www.pilz.tk
Email.: pilz@hotmail.co.th
Spec. คลิกที่เอกสารแนบ + ไฟล์เอกสาร (ด้านล่างค่ะ) Product Detail :
Safety relay PNOZ X - Time monitoring - Technical features
| Description | Download | Accessories |
| PNOZ XV2.1 300/24-240VACDC 2n/o 2n/o t Product number: 774558
|
 |
||
| Product version: | 2.2 |
| Approvals: | CE, cULus Listed, TÜV, CCC |
| Application options: | Safety gate monitor, Instantaneous E-STOP monitoring, Limit switch, Delayed E-STOP monitoring |
| Operating modes: | Single-channel, Automatic reset, Dual-channel, Detection of shorts across contacts, Monitored manual reset |
| PL EN ISO 13849-1 inst. contacts: | e |
| PL EN ISO 13849-1 del. contacts <30s: | d |
| PL EN ISO 13849-1 del. contacts >30s: | c |
| SIL CL IEC 62061 inst. contacts: | 3 |
| SIL CL IEC 62061 del. contacts <30s: | 3 |
| SIL CL IEC 62061 del. contacts >30s: | 3 |
| Product standard: | EN 60947-5-1 |
| Standards: | EN 60204-1, EN 62061, EN 954-1, VDE 0113-1 |
| Supply voltage: | 24 - 240 V |
| Supply voltage type: | AC/DC |
| Supply voltage range: | 24 - 240 V |
| Terminal style: | fixed |
| Terminal type: | Screw terminal |
| Cat. inst. saf. contacts: | 4 |
| Cat. del. saf. contacts < 30s: | 3 |
| Cat. del. saf. contacts > 30s: | 1 |
| Number of instantaneous safety contacts: | 2 |
| Number of delayed safety contacts: | 2 |
| Safety contact delay type: | Delay-on de-energisation |
| Selectable times: | 0,00 s, 10,00 s, 100,00 s, 150,00 s, 20,00 s, 200,00 s, 250,00 s, 300,00 s, 40,00 s, 5,00 s, 60,00 s, 80,00 s |
| Stop category: | 0/1 |
| Max. current at DC13 I (6 cycles/min): | 7.0 A |
| Max. current at AC15: | 5.0 A |
| Width dimension: | 90.0 mm |
| Height dimension: | 87.0 mm |
| Depth dimension: | 121.0 mm |
| Gross weight: | 537 g |
| Net weight: | 505 g |
| Ambient temperature: | -10 - 55 °C |
