E-Catalog > Pilz ( พิลซ์ ) > 774609 PNOZ X9 เซฟตี้รีเลย์ PilZ @ SRINUTCH
PAGE VIEW : 76,445
Product Information :
Name :
774609 PNOZ X9 เซฟตี้รีเลย์ PilZ @ SRINUTCH Category :
- เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
- Pilz ( พิลซ์ )
Brand :
พิลซ์ Model :
774609 PNOZ X9 24VAC 24VDC 7n/o 2n/c 2so PilZ @ SRINUTCHProduct Type :
- สินค้า, ผลิตภัณฑ์
Short Description :
Brand : PilZ
Safety Relays
Type : PNOZ X9 24VAC 24VDC 7n/o 2n/c 2so
Part No.: 774609
Supplier : Srinutch Components Co.,Ltd.
Website : www.pilz.tk
Email.: pilz@hotmail.co.th
Spec. คลิกที่เอกสารแนบ + ไฟล์เอกสาร (ด้านล่างค่ะ) Product Detail :

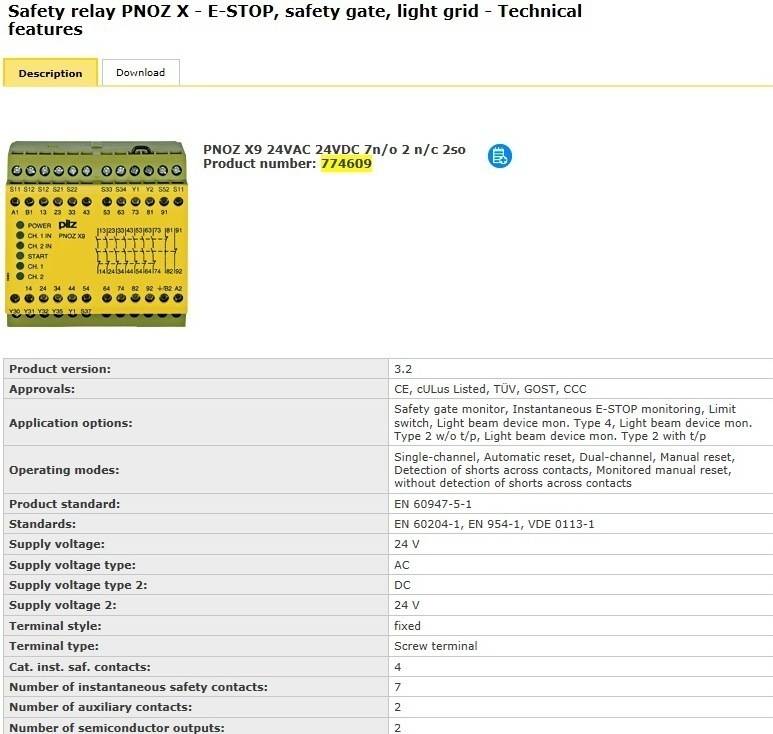

Safety relay PNOZ X - E-STOP, safety gate, light grid - Technical features
| Description | Download |
| PNOZ X9 24VAC 24VDC 7n/o 2 n/c 2so Product number: 774609
|
 |
||
| Product version: | 3.2 |
| Approvals: | CE, cULus Listed, TÜV, GOST, CCC |
| Application options: | Safety gate monitor, Instantaneous E-STOP monitoring, Limit switch, Light beam device mon. Type 4, Light beam device mon. Type 2 w/o t/p, Light beam device mon. Type 2 with t/p |
| Operating modes: | Single-channel, Automatic reset, Dual-channel, Manual reset, Detection of shorts across contacts, Monitored manual reset, without detection of shorts across contacts |
| Product standard: | EN 60947-5-1 |
| Standards: | EN 60204-1, EN 954-1, VDE 0113-1 |
| Supply voltage: | 24 V |
| Supply voltage type: | AC |
| Supply voltage type 2: | DC |
| Supply voltage 2: | 24 V |
| Terminal style: | fixed |
| Terminal type: | Screw terminal |
| Cat. inst. saf. contacts: | 4 |
| Number of instantaneous safety contacts: | 7 |
| Number of auxiliary contacts: | 2 |
| Number of semiconductor outputs: | 2 |
| Max. current at DC13 I (6 cycles/min): | 7.0 A |
| Max. current at AC15: | 5.0 A |
| Width dimension: | 90.0 mm |
| Height dimension: | 87.0 mm |
| Depth dimension: | 121.0 mm |
| Gross weight: | 810 g |
| Net weight: | 750 g |
| Ambient temperature: | -10 - 55 °C |
